LRP-300A MORE
LRP-300
Casing Dia. : φ96,φ118,φ133
Rated depth : 10 - 15 m
Rotation speed : 30 rpm (L), 60 rpm (H)
Feed force : 15 kN
Impact frequency : 33 Hz ( 2,000 bpm )
Dimension(L*W*H) : 3,295 x 1,145 x 1,220 mm
Weight : 690 kg
APPLICATION:
Soil nailing, Rock bolts, Injection holes, Water drainage

FEATURES:
Small and light weight rotary percussion drill, separate power unit, Casing dia up to 133 mm

LRP-400II MORE
LRP-400II
Casing Dia. : φ96,φ118,φ133
Rated depth : 20 - 30 m
Rotation speed : 30 rpm (L), 60 rpm (H)
Feed force : 25.5 kN
Impact frequency : 33 Hz ( 2,000 bpm )
Dimension(L*W*H) : 3,975 x 1,500 x 1,100 mm
Weight : 1,400 kg
APPLICATION:
Anchor drilling, Injection holes, Water drainage

FEATURES:
Small and light weight rotary percussion drill, separate power unit, Casing dia up to 133 mm

RP-840-ST MORE

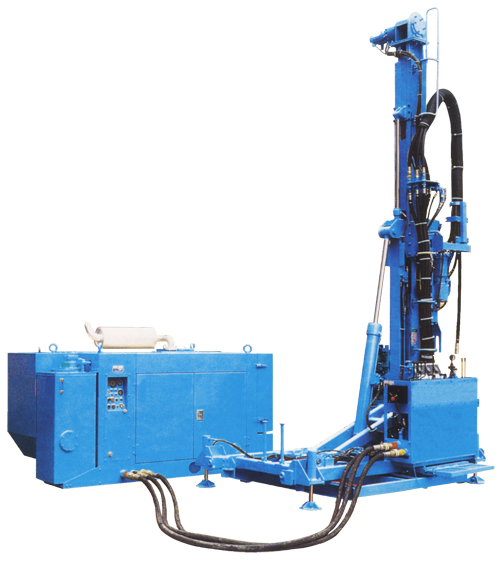

RP-840-ST
Casing Dia. : φ96,φ118,φ133,φ165
Rated depth : Approx. 60 m
Rotation speed : 50 rpm (L), 100 rpm (H)
Feed force : 58.8 kN
Impact frequency : 2,500 - 3,500 bpm
Dimension(L*W*H) : 5,028 x 1,550 x 1,470 mm
Weight : 1,470 kg
APPLICATION:
Anchor drilling, Rock drilling, Water well drilling, Injection holes

FEATURES:
Double pipe clamp, Separate power unit,
max. casing dia 160 mm

RPC-840-GF MORE

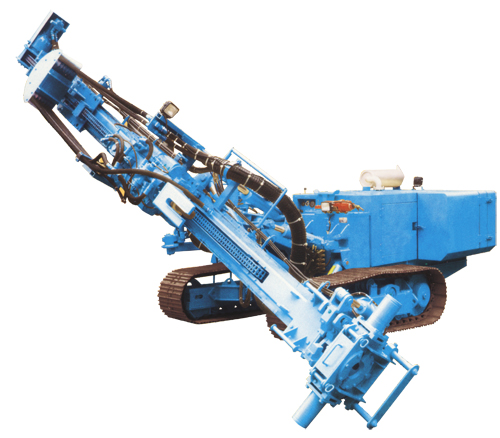

RPC-840-GF
Casing Dia. : φ96,φ118,φ133,φ165,φ216
Rated depth : Approx. 60 m
Rotation speed : 50 rpm (L), 100 rpm (H)
Feed force : 58.8 kN
Impact frequency : 2,500 - 3,500 bpm
Dimension(L*W*H) : 6,645 x 2,300 x 2,450 mm
Weight : 9,000 kg
APPLICATION:
Anchor drilling, Rock driling, Water well drilling, Injection holes

FEATURES:
max. casing dia 216 mm

RP-900-LP MORE

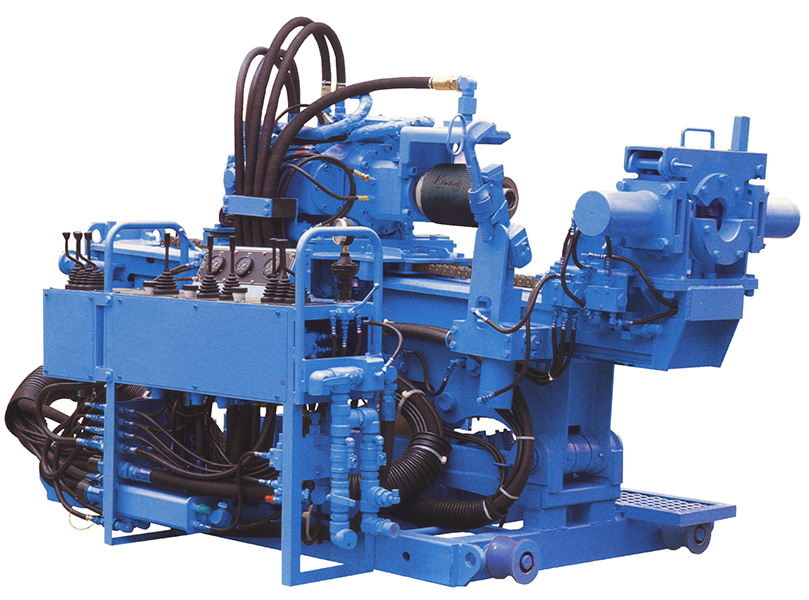

RP-900-LP
Casing Dia. : φ96,φ118,φ133,φ165
Rated depth : Approx. 60 m
Rotation speed : 40 rpm (L), 80 rpm (H)
Feed force : 58.8 kN
Impact frequency : 2,500 - 3,500 bpm
Dimension(L*W*H) : 2,700 x 1,550 x 1,400 mm
Weight : 2,030 kg
APPLICATION:
Anchor drilling, Rock drilling, Water well drilling, Injection holes

FEATURES:

RPC-900 MORE

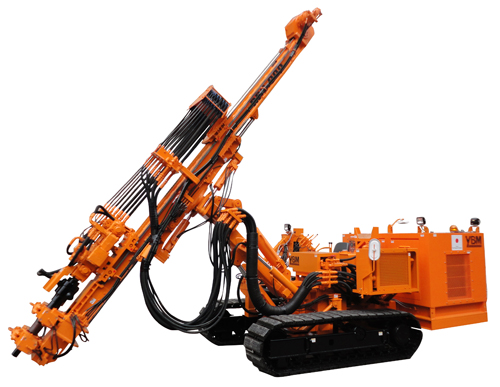

RPC-900
Casing Dia. : φ96,φ118,φ133,φ165,φ216
Rated depth : Approx. 80 m ( 260 ft)
Rotation speed : 40 rpm (L), 80 rpm (H)
Feed force : 58.8 kN
Impact frequency : 2,500 - 3,500 bpm
Dimension(L*W*H) : 7,690 x 2,250 x 2,615 mm
Weight : 11,000 kg
APPLICATION:
Anchor drilling, Rock drilling, Injection holes

FEATURES:
max. casing dia 216 mm
