SI-15SII MORE
SI-15SII
Spindle Bore : 77 mm
Rotation Speed : L: 0 - 14 rpm H: 0 - 50 rpm
Rotation Torque : L: 2.9 kN-m H: 0.8 kN-m
Feed Speed : 0 - 4 m/min
Feed Stroke : 1,000 mm
Max pull down : 27.4 kN
Prime mover : 11 kW-4P, 200-220 V
Dimension(L*W*H) : 1,800 x 1,100 x 2,315 mm
Gross Weight : 1,650 kg

APPLICATION:
Jet Grouting in limited access job sites only 2.4 m /8 ft head room required
Single tube 40.5 mm
Double tube 60.5 mm

FEATURES:
Automatic stepping device
Hydraulic chuck
Pipe clamp
Extension mast, winch


SI-40SIII MORE
SI-40SIII
Spindle Bore : 145mm
Rotation Speed : L: 0 - 30 rpm H: 0 - 60 rpm
Rotation Torque : L: 6.4 kN-m H: 3.2 kN-m
Feed Speed : 0 - 4 m/min
Feed Stroke : 1,000 mm
Max pull down : 39.2 kN
Prime mover : 30 kW-4P, 200-220 V
Dimension(L*W*H) : 2,550 x 1,850 x 2,400 mm
Gross Weight : 2,900 kg

APPLICATION:
Jet Grouting :
Double tube 60.5 / 89 / 115 mm
Triple tube 89 / 115 mm

FEATURES:
Automatic stepping device
Hydraulic chuck
Pipe clamp
Extension mast, winch
c/w Out riggers


YBM-2PSII MORE

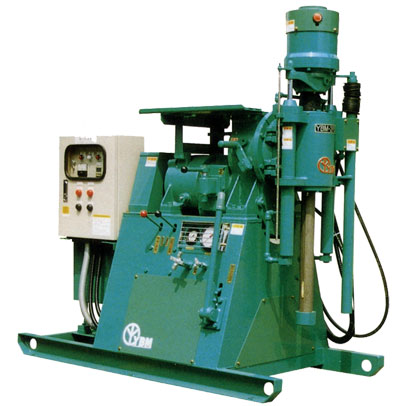

YBM-2PSII
Spindle Bore : 43 mm
Rotation Speed : 7, 20, 37, 115 rpm
Feed Stroke : 500 mm
Max pull down : 16.1 kN
Prime mover : 7.5 kW, 200-220 V
Dimension(L*W*H) : 1,600 x 800 x 1,610 mm
Gross Weight : 720 kg
APPLICATION:
Jet Grouting :
Single tube 40.5 mm
Chemical Grouting 40.5 mm

FEATURES:
Automatic step device
Hydraulic chuck

CLH-150II MORE
no image
Spindle Bore : 145 mm
Rotation Speed : 1st : 4 - 16 rpm
2nd : 14 - 55 rpm
3rd : 30 - 120 rpm
Rotation Torque : 1st : 5.9 kN-m
2nd : 1.6 kN-m
3rd : 0.8 kN-m
Feed Stroke : 500 mm
Max pull down : 60 kN
Prime mover : 11 kW + 5.5 kW, 200-220 V
Dimension(L*W*H) : 2,400 x 1,500 x 1,650 mm
Gross Weight : 3,000 kg
APPLICATION:
Jet Grouting:
Double tube 89 / 115 mm
Triple tube 89 / 115 mm
Casing 119 - 140 mm

FEATURES:
Low head type
Inverter controlled
Hydraulic feed ( 2 cylinders )
Automatic step device
( 25 mm, 50 mm )
c/w Out riggers

CLH-220S MORE
CLH-220S
Spindle Bore : 225 mm
Rotation Speed : 1st : 0 - 14 rpm
2nd : 15 - 28 rpm
3rd : 29 - 52 rpm
4th : 53 - 101 rpm
R1 : 0 - 12
R2 : 12 - 41
Rotation Torque : 1st : 14.3 kN-m
2nd : 7.4 kN-m
3rd : 4.0 kN-m
4th : 2.1 kN-m
Feed Stroke : 500 mm
Max pull down : 125 kN
Prime mover : 22 kW + 7.5 kW, 200-220 V
Dimension(L*W*H) : 2,500 x 1,720 x 2,020 mm
Gross Weight : 5,100 kg
APPLICATION:
Jet Grouting :
Double tube 90 mm, 115 mm
Triple tube 90 mm, 115 mm
Casing up to 220 mm

FEATURES:
Low head type
Inverter controlled
Hydraulic feed ( 2 cylinders )
Automatic step device ( 25 mm, 50 mm )
c/w Out riggers
